JE20-2513
JE20-2513
Description
The cleaning of seagoing vessels, shipyards, construction sites and machinery depots often requires incredibly demanding pressure cleaning applications. Getting rid of abrasives and contaminants is crucial so as to avoid any structural damage of the surfaces being cleaned.

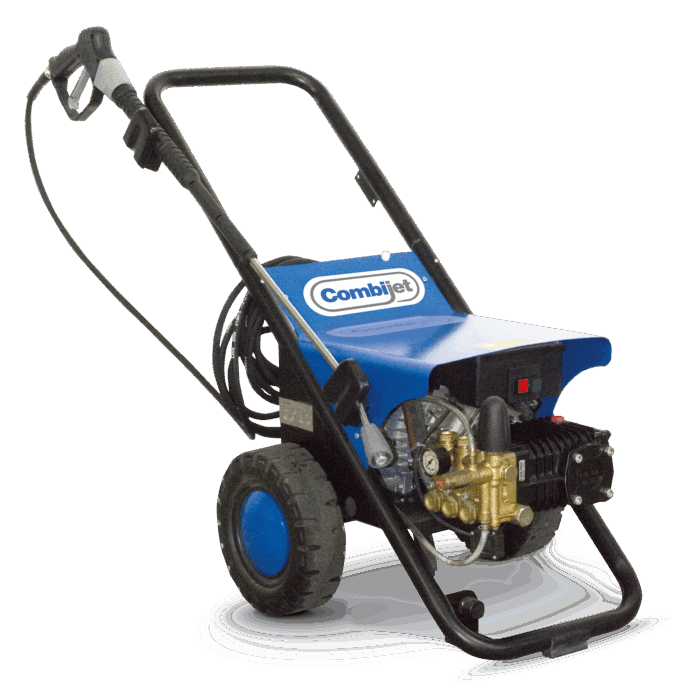

The Combijet JE20-2513 Electric Cold Water High Pressure Cleaner Electric fits the bill for this type of cleaning, and as a result has become a vital tool within the maritime and constructions sectors everywhere.
250 bars and running on 50Hz and 60Hz frequency, the JE20-2513 has been fitted with a 4-pole electric motor with thermal protection and water cooling capability; full ceramic coated pistons; a brass linear pump head with built-in bypass valve; a 10 meter ultra-high pressure hose and pressure regulator; a lance with a straight jet nozzle; suction and delivery S/S valves; integrated detergent suction with suction probe, and a stainless steel trigger operated dump gun.
More Information
Water-cooled motor – keeps the motor at optimum temperatures
Total Stop (Delayed) – shuts down the motor when pump is not in use, with a 15 second delay, protecting the unit from overheating
Flexible coupling between motor and pump – increased lifetime of motorpump
Specifications
| Operating Pressure (bar) |
30 – 250 Bar |
|---|---|
| Operating Pressure (psi) |
435 – 3600 PSI |
| Flow Rate |
7.5 – 13 lpm / 1.98 – 3.44 GPM |
| Power / Voltage |
8700 kW / 380V 60Hz 3 ph |
| Motor Pump Type |
MPW5 |
| RPM |
1700 |
| Inlet Max. Temperature |
40° C |
| Machine Dimension |
50 x 60 x 107 cm |
| Machine Weight |
56 Kg / 123 lbs |
